Punch Polishing Machine & Compression Tooling
OVERVIEW

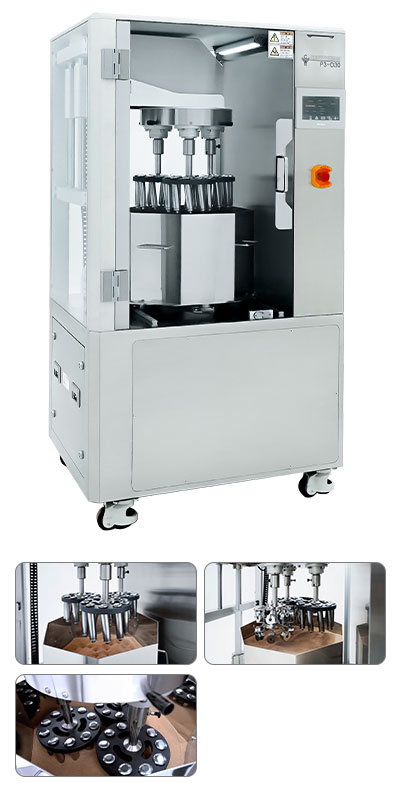

The YPM-C1 Polish is specially designed to automatic the polishing of tablet punches. The YPM-C1 Polisher is mainly used for making high quality of punch surface finishing to increase and to improve the operational efficiency of daily production process as well as providing shorten production time and reducing production costs. The product holder can be designed and manufactured to correspond with an end use's requirement.
STANDARD ITEMS
- Adjustable speed drive with adjustabe working hous on touch screen
- Up to 3 product holders
- Available running direct to clockwise and counterclockwise
- Available lifting system by manual
- Stainless steel container
- Front opening door with interlock system
KEY CHARACTERISTICS
- Full automatic polishing drive system
- Designed stainless steel cover with aluminum profile
- Optimized design o be available placing in narrow space
- Simple design with touch screen for easy operation with maintenance
- Adjustable speed drive
- Safety electrical interlock system
- No need special operating training and skill
STANDARD TOOLING
- B-type holder 1st(3EA):12 Punches hold per holder
- D-type holder 1st(3EA):10Punches hold per holder
OPTIONAL ITEMS
- Ultrasonic cleaner
- Additional special designed product holders
- Adding dust extracting equipment
OPTIONAL ITEMS
- User-friendly Touch Screen Operation
- Available power option : 220/2P, 50/60Hz
- Power consumption : 1.5Kw(5kW)
- Dimension : L950 X W700 X H1800
- Weight 600kg
